Original new ARM STM32F030RCT6 switch control chip(new) 32-bit IC chip MCU microcontroller LQFP-64 package
STM32F030RCT6, ultra-high cost-effective MCU
Special advantages:
1. Up to 6 serial ports, all support DMA, and support interrupt sending and receiving.
2. The internal reference voltage of STM32F030RCT6 has high accuracy, while STM32F103 has no internal reference voltage. STM32F103 needs to use an external reference voltage (reference voltage).
3. Up to 16 ADC analog sampling channels with a precision of 12 bits. Support DMA.
4. Large memory 32KB SRAM, 256KB Flash, suitable for running small UCOS system.
5. Most IOs support 5V voltage compatibility.
6. Rich peripheral interfaces, including IIC, SPI, USART, ADC, RTC, etc.
As many as 6 Uart, all support DMA channels, processing data is super simple, does not require CPU intervention, and reduces the burden on the CPU.
Large storage capacity, up to 32KB RAM, 256KB Flash, suitable for running small operating systems such as UCOS
Detailed description:
| Part Number | STM32F030RCT6 |
| Minimum Quantity | 1 |
| Description | IC MCU 32BIT 256KB FLASH 64LQFP |
| Category | Electronic Components,Accessories & Telecommunications >>Integrated Circuits |
| Minimum Quantity | 1 |
| Packaging | Tray |
| Series | STM32F0 |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4 V ~ 3.6 V |
| Data Converters | A/D 18x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |

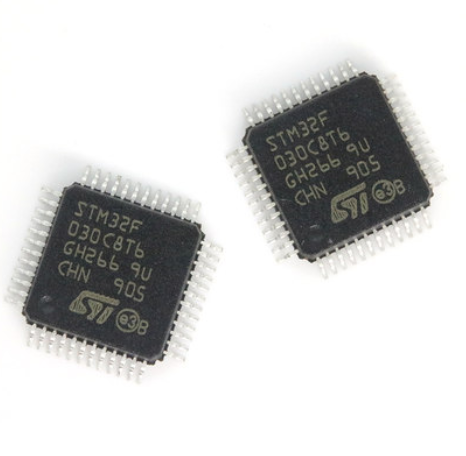

Picture details:
